See Specifications & Warranty
Total Gym ELEVATE Encompass Pilates Package Specifications
ELEVATE Encompass along with 4 accessories: Telescoping Toe Bar, Standing Platform, Slide Distance Regulator and Leg Pulley System
ENCOMPASS
| Unfolded |
106ā x 38ā x 57ā [L/W/H] (2.69 m x 0.96 m x 1.45 m) |
|---|
| Folded |
20ā x 38ā x 57ā [L/W/H] (0.51 m x 0.96 m x 1.45 m) |
|---|
| Tubing |
1.7" x 3.2" Aluminum Extrusion (4.4cm x 8.1cm) |
|---|
| Tower |
Reinforced steel, silver powder coating with internal level locking mechanism |
|---|
| User Weight |
Rated to 350 lbs. body weight. (159 kg) |
|---|
| Maximum Load Capacity |
650 lbs. (295 kg) Inclusive of glideboard |
|---|
| User Height Limit |
6' 5" (2.0 meters) |
|---|
| Glideboard |
16" x 48" (41 cm x 122 cm). 7 position adjustable angles. Heavy duty, two-tone design, box stitched, tear resistant vinyl |
|---|
| Foam Padding |
1 1/2" (4 cm) high rebound, high density foam. |
|---|
| Rollers |
Better Sealed precision ball bearings |
|---|
| Pulleys |
ABS plastic protective shield over a steel frame, Nylon roller with precision ball bearings |
|---|
| Cables |
2000 lb. test (907.2 kg) nylon 12 coated steel aircraft cable |
|---|
| Handles |
Soft synthetic rubber Padded Handles with ABS swivel handle and nylon webbing for hammer grip action |
|---|
| Frame & Rail Construction |
Anodized Aluminum Rails with all connections reinforce by steel or forged aluminum |
|---|
| Unit Weight |
180 lbs (82 Kg) |
|---|
| Resistance Levels |
22 calibrated incline levels, with release lever to lock rails into place. 1% - 62% bodyweight |
|---|
| Storage Capabilities |
Hydraulic lift assists folding. Folds and stores upright. Rolls in hand-truck fashion. |
|---|
| Rolling Range |
40" (1.0 meters) |
|---|
| Included Equipment: |
7 position Adjustable Glideboard; Dynamic [unilateral/bilateral] Pulley System; Multi-point pulley attachment to tower; soft grip LAT Bars with 7 pulley positions; Folding Foot Holder; Telescoping Squat Stand with 3 height positions and folding platform |
|---|
Total Gym ELEVATE Encompass Pilates Package Commercial Warranty and Shipping:
ENCOMPASS
| Parts & Upholstery |
1 year |
|---|
Warranties outside the US may vary. Contact your local authorized distributor for details.
| Shipping Weight |
265 lbs (including pallet) |
|---|
| Shipping Size |
60" x 30" x 25" (including pallet) |
|---|
ACCESSORIES
| Commercial Warranty |
1 year for all parts |
|---|
Warranties outside the US may vary. Contact your local authorized distributor for details.

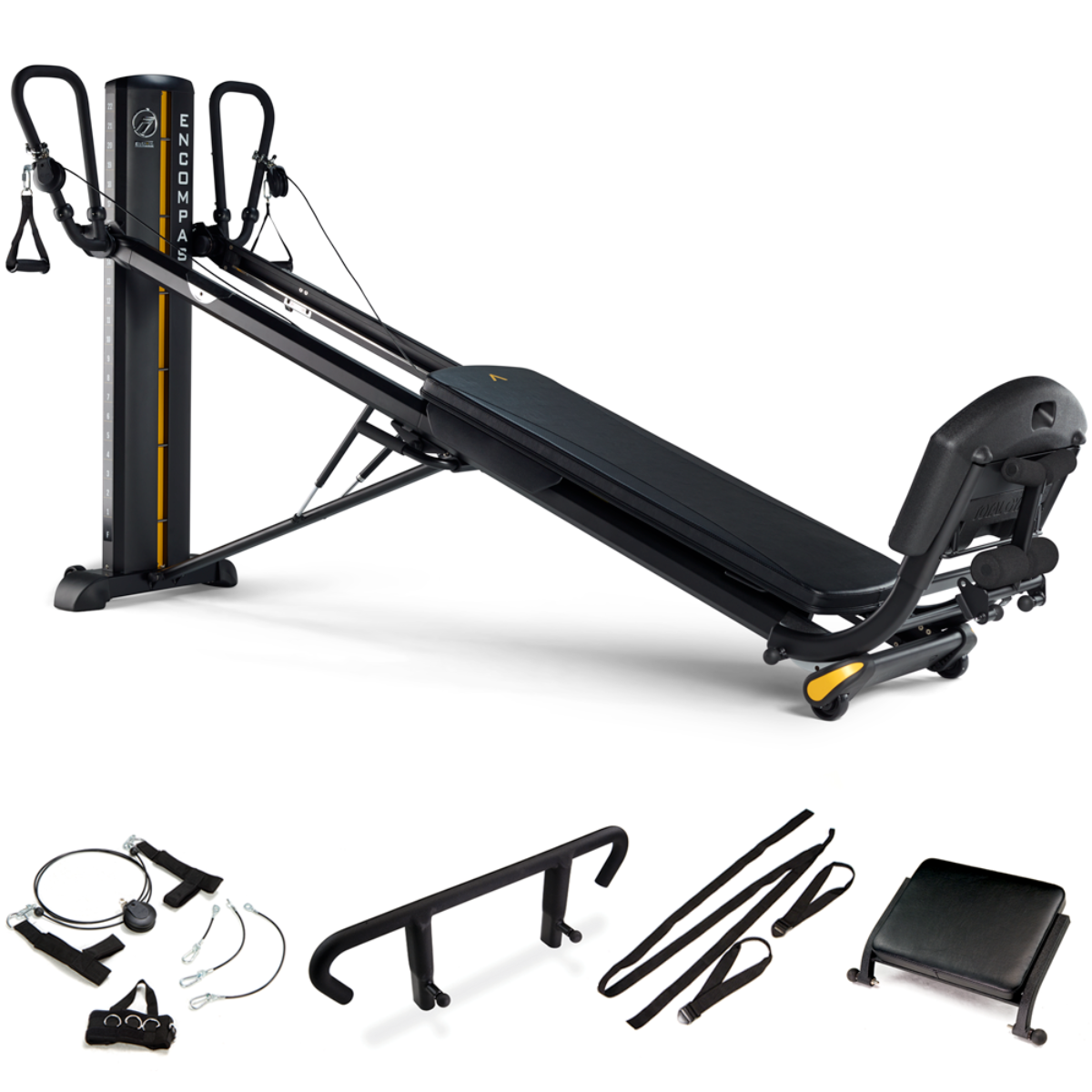

Total Gym ELEVATE Encompass Pilates Package
Add the full functionality of Pilates to your Encompass with the comprehensive ELEVATE Encompass Pilates Package. Pilates movements increase reach, flexibility and core control with low joint compression. The physical and mental benefits of traditional and evolved Pilates add balance to any fitness program.
Includes the ELEVATE Encompass, Telescoping Toe Bar, Standing Platform, Slide Distance Regulator and Leg Pulley System.
Total Gym ELEVATE Encompass Pilates Package Benefits:
The ELEVATE Encompass Pilates Package includes all the necessary accessories to add Pilates training to your fitness program.
Benefits for the individual exerciser:
- Enhance core strength, flexibility, fluid movements, breath.
- Engage the mind body connection.
- Increase overall tone and definition.
Total Gym ELEVATE Encompass Pilates Package Features:

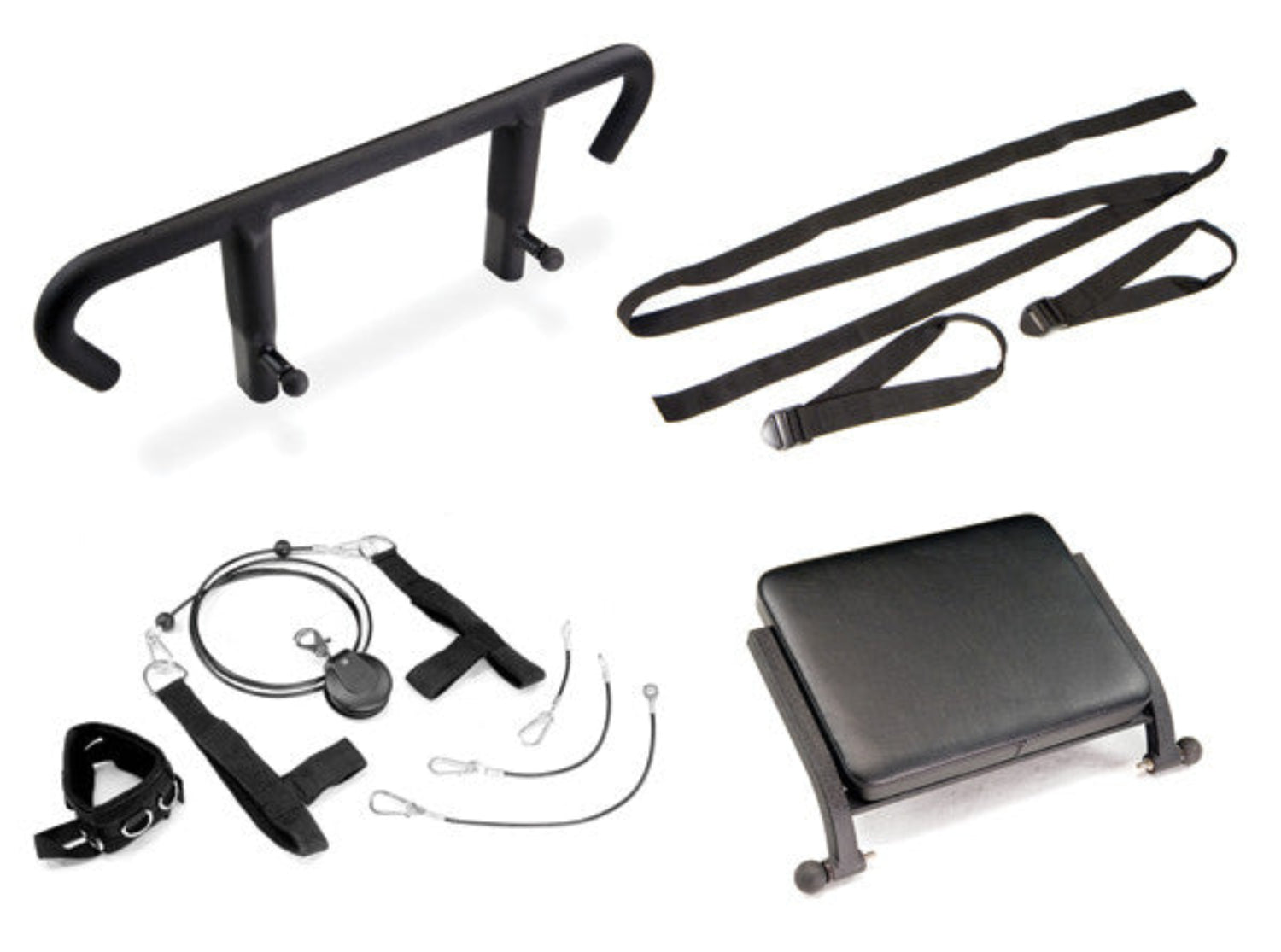

In addition to the Encompass, the ELEVATE Encompass Pilates Package includes the following accessories:
Telescoping Toe Bar
Facilitates upper body, lower body and torso stretching and strengthening Pilates exercises.
Standing Platform
Lets you perform Pilates leg, trunk conditioning and other exercises that challenge balance and stability.
Slide Distance Regulator
Lets you limit the travel distance of the glideboard on either the incline or decline. You can also lock the glideboard in place.
Leg Pulley System
Engage a full complement of leg exercises covering the entire spectrum of resistance training and Pilates. Exercise with a single leg or both legs simultaneously.
